Documenter Integration

MakieMaestro includes a plugin for Documenter.jl that allows you to embed Makie figures directly into your documentation using code blocks.

Other packages with similar purpose

A package that can be used for example pages in you documentation is Literate.jl. It can be similarly efficient in producing figures in your documentation. When choosing between MakieMaestro and Literate, you should consider, whether the markdown in the pages is more important than the code (e.g. in the @examples blocks) or the other way around. If code is the main focus Literate might be a better choice.

Setup

To use the MakieMaestro ↔ Documenter plugin in your documentation, add the following to your docs/make.jl file:

using Documenter, MakieMaestro
using YourPackage

# Make sure to set a default width or use the `size` option in the `@makie` block
MakieMaestro.Themes.width!(15u"cm")

# Create the MakiePlugin with optional customization
makie_blocks = MakieDocBlocks(;
    path="assets/my_figure_dir",  # default is  "assets/figs",
    # Optionally specify the export formats (default: [:svg, :pdf])
    formats=[:svg, :png, :pdf, :eps],
)

makedocs(
    # ... your existing Documenter options ...
    plugins = [makie_blocks],
)

MakieMaestro.MakieDocBlocks — Function

MakieDocBlocks(;path=@__DIR__ * "assets/figs/", formats=[:svg, :pdf])

Create the plugin for generating Documenter figures from blocks of code in the documentation pages.

source

Constructing the plugin is not necessary

It is not necessary to create the plugin with MakieDocBlocks. As long as you do not want to change the default settings of the plugin. You only need to load MakieMaestro to use the Documenter plugin. However, consider defining the plugin if you are developing a package with other contributors as it is more explicit and will make it easier for them to understand the documentation generation process.

Custom `path`

The target figure directory should not be preceded by a slash.

# MakieDocBlocks(;path="/assets/my_figure_dir") # ⚠️ DOESN'T WORK!!!
MakieDocBlocks(;path="assets/my_figure_dir") # ⬅️ USE THIS

For more details about this issue, see the functioning of joinpath.

CI setup

For the CI to be able to build figures using GLMakie you need to set up a screen in the CI environment. You can do this by prepending the command with

DISPLAY=:0 xvfb-run -s '-screen 0 1024x768x24' --

For example to build the documentation, you will run the command

DISPLAY=:0 xvfb-run -s '-screen 0 1024x768x24' -- julia --project --color=yes make.jl

Look at the workflows in this repository for a working example.

Basic Usage

Once the plugin is set up, you can include Makie figures in your documentation using code blocks with the @makie language tag:

```@makie
# Your code for generating the figure
fig # Return the figure at the end of the block
```

The code will be executed during the documentation build, and the resulting figure will be saved and inserted into your documentation as an image (specifically the Documenter LocalImage).

The code in the block must return a Figure or FigureAxis or FigureAxisPlot in order to work.

Types that can be exported

There are other types that can be exported and used in the documentation. The guiding criterium is that the function that is defined by wrapping the code block in a function definition must be a function that is savable using savefig. See Exporting publication figures.

What is allowed in the block

Not all code is allowed in the @makie block. Most notably the definition of a struct is not allowed. The limitation arises from the fact that not all code is allowed to be placed inside a function. You can bypass this limitation in two ways:

You can define the struct or call using ... in an @example block or @setup block with the same ID and use it in the @makie block that follows.
You can wrap the disallowed expression in an @eval begin ... end block to evaluate it in the top level from within the function that the @makie block defines.

No need to add `using MakieMaestro`

using MakieMaestro

is already included at the top of the block for convenience so there is no need to add it yourself.

You can also use named blocks with the same format as for the documenter @example block. The code will be evaluated in the same module as the @example blocks with this name, so it will have the global variables at its disposal.

For example this is possible to have

```@example wavepocket
x = -2.2:0.01:2.2
y = @. exp(-x^2) * cos(5x)
```
```@makie  wavepocket
lines(x,y)
```

It is also possible to specify some of the options for savefig to modify the size, file name, theme, etc. See Advanced Usage for further details.

Example

Here's an example of using the @makie code block in documentation:

This code block

```@makie
x = -2π:0.01:2π
fig,ax,_ = lines(x, sin.(x.^2) ./ x, linewidth = 2, label = "chirp(x)")
axislegend(ax)
fig
```

generates the following figure

This @example and @makie blocks are evaluated in the same module

```@example besselj
using SpecialFunctions
x = 0:0.01:20
y = besselj0.(x)
nothing # hide
```
```@makie  besselj
lines(x,y)
```

and produce

using SpecialFunctions
x = 0:0.01:20
y = besselj0.(x)

Advanced Usage

Any options specified after a ; in the @makie block will be parsed used for saving or showing the figure in the documentation.

The options that can be specified are:

basename – Changes the figure path name. By default the basename to save the figure as is"makie_$(name)_$(hash(code))"

```@makie named_figure; basename="rose"
θs = 0:0.01:4π
rs = sin.(4θs)
x,y = rs .* cos.(θs), rs .* sin.(θs)
lines(x,y)
```

formats – Specify the export formats to use for the figure. You can specify a single format as a symbol or a vector of symbols. The default is determined by the plugin options.

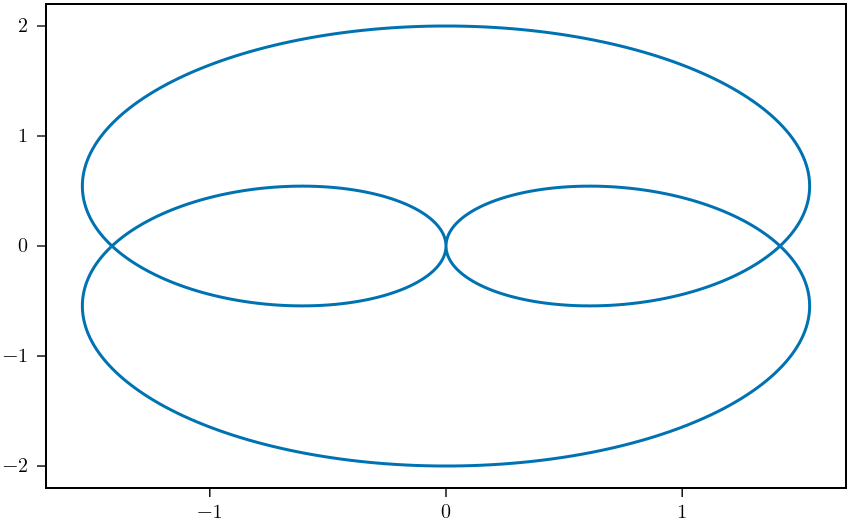

```@makie hypotrochoid; formats = :png
ts = 0:0.01:2π
x = @. cos(ts) - cos(3ts)
y = @. sin(ts) - sin(3ts)
lines(x,y)
```

`:png` format on a HTML spans the whole width

If you choose to export to a png the figure will span the full width of the documentation page. If you want to enforce the size of the figure exported, you need to use the :svg format (which is default).

Use `:png` for images

If you use images or CellGrid)/ImageLike plots in your documentation, you should be using them with the :png format. It is possible to export these plots to :svg but it leads to performance issues in the browser since vector graphics are really not meant for use with image like graphics.

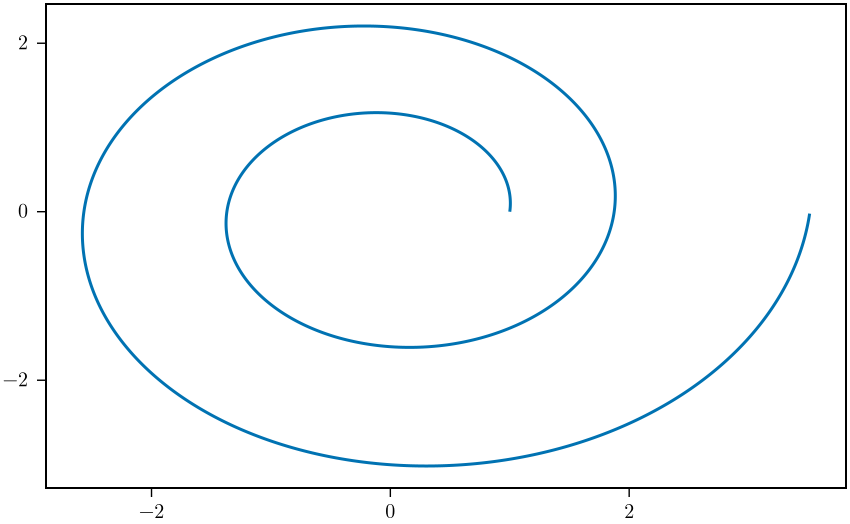

```@makie exponential_spiral; formats = [:png, :pdf]
θs = 0:0.01:4π
rs = @. exp(0.1θs)
x,y = rs .* cos.(θs), rs .* sin.(θs)
lines(x,y)
```

caption – Attach a caption under the figure in the documentation.
size – Specify the size of the figure to export. All of the options that can be passed to savefig are possible

using GeometryBasics
struct FitzhughNagumo{T}
    ϵ::T
    s::T
    γ::T
    β::T
end
P = FitzhughNagumo(0.1, 0.0, 1.5, 0.8)
f(x, P::FitzhughNagumo) = Point2f(
    (x[1]-x[2]-x[1]^3+P.s)/P.ϵ,
    P.γ*x[1]-x[2] + P.β
)
f(x) = f(x, P)

f (generic function with 2 methods)

```@makie large_figure; size=25u"cm"
streamplot(f, -1.5..1.5, -1.5..1.5, colormap = :magma)
```

alt – Specify an alternate text to add to the figure in the HTML output. (alt_figure; alt = "A figure")
